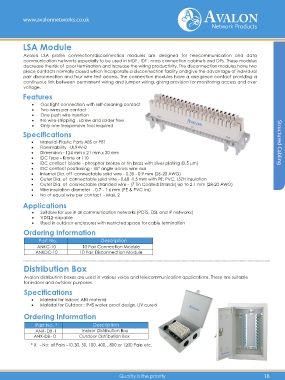

LSA Module

Avalon LSA profile connection/disconnection modules are designed for telecommunication and data
communication networks especially to be used in MDF , IDF , cross connection cabinets and DPs. These modules
decrease the risk of poor termination and increase the wiring productivity. The disconnection modules have two
piece contacts normally closed which incorporate a disconnection facility and give the advantage of individual
pair disconnection and four wire test access. The connection modules have a one piece contact providing a
continuous link between permanent wiring and jumper wiring, giving provision for monitoring access and over
voltage.
Features
• Gas tight connection with self-cleaning contact
• Two wires per contact
• One push wire insertion
• No wire-stripping , screw and solder free
• Only one inexpensive tool required
Specifications
• Material-Plastic Parts ABS or PBT Structured Cabling
• Flammability -UL94V-0
• Dimension - 124 mm x 21 mm x 30 mm
• IDC Type - Krone or 110
• IDC contact blade - phosphor bronze or tin brass with silver plating (0.5 μm)
• IDC contact positioning - 45° angle across wire axis
• Internal Dia. off connectable solid wire - 0.35 - 0.9 mm (26-20 AWG)
• Outer Dia. of connectable solid wire - 0.68 -1.5 mm with PE, PVC, LSZH Insulation
• Outer Dia. of connectable stranded wire - (7 Tin Coated Strands) up to 2.1 mm (28-20 AWG)
• Wire insulation diameter - 0.7 - 1.6 mm (PE & PVC Ins)
• No of equal wire per contact - Max. 2
Applications

• Suitable for use in all communication networks (POTS, DSL and IP networks)
• VDSL2-capable
• Used in outdoor enclosures with restricted space for cable termination
Ordering Information

Part No. Description

ANKC-10 10 Pair Connection Module
ANKDC-10 10 Pair Disconnection Module
.....................................................................................................................................................................................................................................................................................
Distribution Box

Avalon distribution boxes are used in various voice and telecommunication applications. These are suitable
for indoor and outdoor purposes.
Specifications

• Material for Indoor: ABS material
• Material for Outdoor : IP45 water proof design, UV cured
Ordering Information

Part No. * Description
ANX-DB-I Indoor Distribution Box
ANX-DB-O Outdoor Distribution Box
* X – No: of Pairs –10,30, 50, 100, 400…800 or 1200 Pairs etc.
