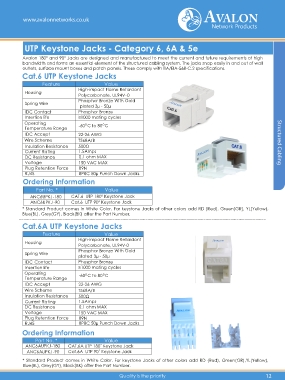

UTP Keystone Jacks - Category 6, 6A & 5e

Avalon 180° and 90° Jacks are designed and manufactured to meet the current and future requirements of high
bandwidth and forms an essential element of the structured cabling system. The jacks snap easily in and out of wall
outlets, surface mount boxes and patch panels. These comply with TIA/EIA-568-C.2 specifications.
Cat.6 UTP Keystone Jacks

Feature Value
High-impact Flame Retardant

Housing
Polycarbonate, UL94V-0
Phosphor Bronze With Gold
Spring Wire
plated 3µ - 50µ
IDC Contact Phosphor Bronze

Insertion life ≥1000 mating cycles

Operating -60 C to 80 C
0
0
Temperature Range
IDC Accept 22-26 AWG

Wire Scheme T568A/B

Insulation Resist ance 500Ω Structured Cabling
Current Rating 1.5Amps
DC Resist ance 0.1 ohm MAX
Voltage 150 VAC MAX
Plug Retention Forc e 89N
RJ45 8P8C 50µ Punch Down Jacks
Ordering Information

Part No. * Value

ANC6UPKJ-180 CAT.6 UTP 180º Keystone Jack
ANC6UPKJ -90 Cat.6 UTP 90º Keystone Jack
* Standard Product comes in White Color. For keystone Jacks of other colors add RD (Red), Green(GR), YL(Yellow),

Blue(BL), Grey(GY), Black(BK) after the Part Number.
....................................................................................................................................................................................................................................................................................
Cat.6A UTP Keystone Jacks
Feature Value
High-impact Flame Retardant

Housing
Polycarbonate, UL94V-0
Phosphor Bronze With Gold
Spring Wire

plated 3µ - 50µ
IDC Contact Phosphor Bronze
Insertio n life ≥1000 mating cycles

Operating -60 C to 80 C
0
0
Temperature Range
IDC Accept 22-26 AWG

Wire Scheme T568A/B
Insulation Resist ance 500Ω
Current Rating 1.5Amps
DC Resistance 0.1 ohm MAX

Voltage 150 VAC MAX
Plug Retention Forc e 89N
RJ45 8P8C 50µ Punch Down Jacks

Ordering Information

Part No. * Value

ANC6AUPKJ-180 CAT.6A UTP 180˚ Keystone Jack
ANC6AUPKJ -90 Cat.6A UTP 90˚ Keystone Jack

* Standard Product comes in White Color. For keystone Jacks of other colors add RD (Red), Green(GR),YL(Yellow),
Blue(BL), Grey(GY), Black(BK) after the Part Number.
