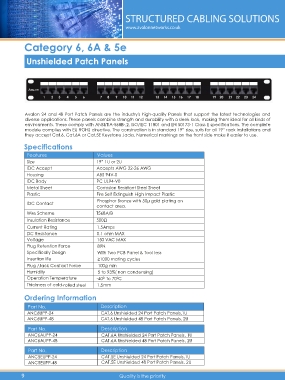

Category 6, 6A & 5e

Unshielded Patch Panels

Avalon 24 and 48 Port Patch Panels are the industry's high-quality Panels that support the latest technologies and
diverse applications. These panels combine strength and durability with a sleek look, making them ideal for all kinds of
environments. These comply with ANSI/TIA-568B-.2, ISO/IEC 11801 and EN 50173-1 Class E specifications. The complete
module complies with EU ROHS directive. The construction is in standard 19” size, suits for all 19” rack installations and
they accept Cat.6, Cat.6A or Cat.5E Keystone Jacks. Numerical markings on the front side make it easier to use.

Specifications

Features Values

Size 19” 1U or 2U
IDC Accept Accepts AWG 22-26 AWG
Housing ABS 94V-0
IDC Body PC UL94-V0
Metal Sheet Corrosion Resistant Steel Sheet
Plastic Fire Self Extinguish High Impact Plastic
Phosphor Bronze with 50µ gold plating on
IDC Contact
contact area.
Wire Scheme T568A/B
Insulation Resistance 500Ω
Current Rating 1.5Amps
DC Resistance 0.1 ohm MAX
Voltage 150 VAC MAX
Plug Retention Force 89N
Specifically Design With Two PCB Panel & Tool less
Insertion life ≥1000 mating cycles
Plug /Jack Contact Force 100g min
Humidity 5 to 93%( non condensing)
Operation Temperature -40 to 70 C
0
0
Thickness of cold-rolled steel 1.5mm
Ordering Information

Part No. Description

ANC6UPP-24 CAT.6 Unshielded 24 Port Patch Panels,1U
ANC6UPP-48 CAT.6 Unshielded 48 Port Patch Panels, 2U
Part No. Description
ANC6AUPP-24 CAT.6A Unshielded 24 Port Patch Panels , 1U
ANC6AUPP-48 CAT.6A Unshielded 48 Port Patch Panels , 2U
Part No. Description

ANC5EUPP-24 CAT.5E Unshielded 24 Port Patch Panels ,1U
ANC5EUPP-48 CAT.5E Unshielded 48 Port Patch Panels , 2U
