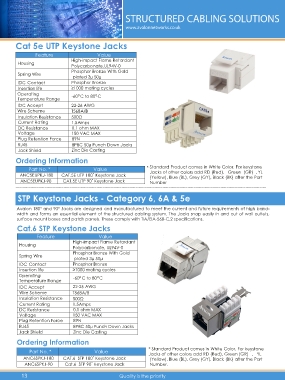

Cat 5e UTP Keystone Jacks

Feature Value

High-impact Flame Retardant
Housing
Polycarbonate,UL94V-0
Phosphor Bronze With Gold
Spring Wire

plated 3µ 50µ
IDC Contact Phosphor Bronze

Insertion life ≥1000 mating cycles

Operating -60 C to 80 C
0
0
Temperature Range
IDC Accept 22-26 AWG

Wire Scheme T568A/B
Insulation Resist ance 500Ω
Current Rating 1.5Amps

DC Resistance 0.1 ohm MAX
Voltage 150 VAC MAX
Plug Retention Forc e 89N
RJ45 8P8C 50µ Punch Down Jacks
Jack Shield Zinc Die Casting
Ordering Information

Part No. * Value * Standard Product comes in White Color. For keystone

ANC5EUPKJ-180 CAT.5E UTP 180˚ Keystone Jack Jacks of other colors add RD (Red), Green (GR) , YL
(Yellow), Blue (BL), Grey (GY), Black (BK) after the Part

ANC5EUPKJ-90 CAT.5E UTP 90˚ Keystone Jack Number
.........................................................................................................................................................................................................................................................................................
STP Keystone Jacks - Category 6, 6A & 5e
Avalon 180° and 90° Jacks are designed and manufactured to meet the current and future requirements of high band-
width and forms an essential element of the structured cabling system. The Jacks snap easily in and out of wall outlets,
surface mount boxes and patch panels. These comply with TIA/EIA-568-C.2 specifications.
Cat.6 STP Keystone Jacks

Feature Value

High-impact Flame Retardant
Housing
Polycarbonate, UL94V-0
Phosphor Bronze With Gold
Spring Wire

plated 3µ 50µ
IDC Contact Phosphor Bronze

Insertio n life ≥1000 mating cycles

Operating -60 C to 80 C
0
0
Temperature Range

IDC Accept 22-26 AWG

Wire Scheme T568A/B
Insulation Resist ance 500Ω
Current Rating 1.5Amps

DC Resistance 0.1 ohm MAX
Voltage 150 VAC MAX
Plug Retention Forc e 89N
RJ45 8P8C 50µ Punch Down Jacks

Jack Shield Zinc Die Casting
Ordering Information

Part No. * Value * Standard Product comes in White Color. For keystone

Jacks of other colors add RD (Red), Green (GR) , YL

ANC6SPKJ-180 CAT.6 STP 180˚ Keystone Jack (Yellow), Blue (BL), Grey (GY), Black (BK) after the Part
ANC6SPKJ-90 Cat.6 STP 90˚ Keystone Jack Number.
13 Quality is the priority
