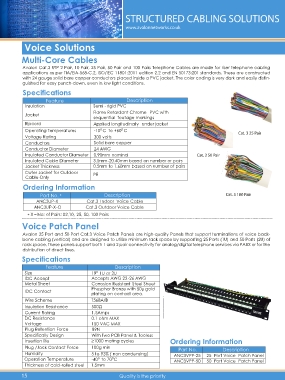

Page 24 - Avalon Catalogue

STRUCTURED CABLING SOLUTIONS

www.avalonnetworks.co.uk

Voice Solutions

Multi-Core Cables

Avalon Cat.3 UTP 2 Pair, 10 Pair, 25 Pair, 50 Pair and 100 Pairs Telephone Cables are made for riser telephone cabling
applications as per TIA/EIA-568-C.2, ISO/IEC 11801:2011 edition 2.2 and EN 50173:201 standards. These are constructed
with 24 gauge solid bare copper conductors placed inside a PVC jacket. The color coding is very dark and easily distin-
guished for easy punch-down, even in low light conditions.
Specifications
Feature Description

Insulation Semi - rigid PVC

Flame Retardant Chrome PVC with
Jacket
sequential footage markings

Ripcord Applied longitudinally under jacket
0
Operating Temperatures -10 C to +60 C Cat. 3 25 Pair
0

Voltage Rating 300 volts

Conductors Solid bare copper

Conductor Diam eter 24 AWG

Insulated Conductor Diameter 0.90mm nominal Cat. 3 50 Pair

Insulated Cable Diameter 3.5mm-20.40mm based on number or pairs

Jacket Thickness 0.5mm to 1.60mm based on number of pairs

Outer Jacket for Outdoor PE
Cable Only
Ordering Information

Part No. * Description Cat. 3 100 Pair

ANC3UP-X Cat.3 Indoor Voice Cable
ANC3UP-X-O Cat.3 Outdoor Voice Cable

* X – No: of Pairs: 02,10, 25, 50, 100 Pairs
.........................................................................................................................................................................................................................................................................................
Voice Patch Panel
Avalon 25 Port and 50 Port Cat.3 Voice Patch Panels are high-quality Panels that support terminations of voice back-
bone cabling (vertical) and are designed to utilize minimum rack space by supporting 25 Ports (1U) and 50 Ports (2U) of
rack space. These panels support both 1 and 2 pair connectivity for analog/digital telephone services via PABX or for the
distribution of direct lines.
Specifications
Feature Description

Size 19” 1U or 2U
IDC Accept Accepts AWG 22-26 AWG
Metal Sheet Corrosion Resistant Steel Sheet

Phosphor Bronze with 50µ gold
IDC Contact
plating on contact area.
Wire Scheme T568A/B
Insulation Resistance 500Ω
Current Rating 1.5Amps
DC Resistance 0.1 ohm MAX
Voltage 150 VAC MAX
Plug Retention Force 89N
Specifically Design With Two PCB Panel & Tooless
Insertion life ≥1000 mating cycles Ordering Information
Plug /Jack Contact Force 100g min Part No. Description

Humidity 5 to 93% ( non condensing ) ANC3VPP-25 25 Port Voice Patch Panel

0
Operation Temperature -40 to 70 0 ANC3VPP-50 50 Port Voice Patch Panel
C

Thickness of cold-rolled steel 1.5mm
15 Quality is the priority
