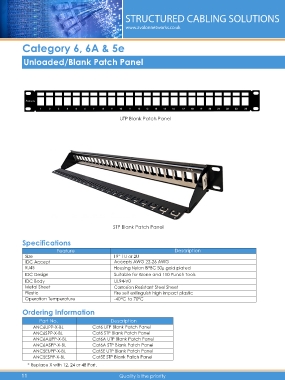

P. 20
STRUCTURED CABLING SOLUTIONS
www.avalonnetworks.co.uk
Category 6, 6A & 5e
Unloaded/Blank Patch Panel
UTP Blank Patch Panel
STP Blank Patch Panel
Specifications
Feature Description
Size 19” 1U or 2U
IDC Accept Accepts AWG 22-26 AWG
RJ45 Housing Nylon 8P8C 50µ gold plated
IDC Design Suitable for Krone and 110 Punch Tools
IDC Body UL94-V0
Metal Sheet Corrosion Resistant Steel Sheet
Plastic Fire self extinguish high impact plastic
Operation Temperature -40 C to 70 C
0
0
Ordering Information
Part No. Description
ANC6UPP-X-BL Cat6 UTP Blank Patch Panel
ANC6SPP-X-BL Cat6 STP Blank Patch Panel
ANC6AUPP-X-BL Cat6A UTP Blank Patch Panel
ANC6ASPP-X-BL Cat6A STP Blank Patch Panel
ANC5EUPP-X-BL Cat5E UTP Blank Patch Panel
ANC5ESPP-X-BL Cat5E STP Blank Patch Panel
* Replace X with 12, 24 or 48 Port.
11 Quality is the priority
