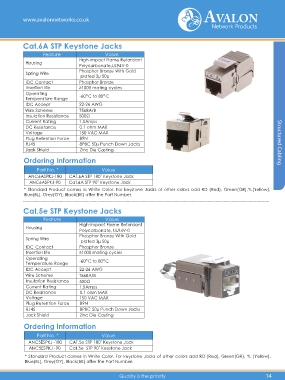

Cat.6A STP Keystone Jacks
Feature Value
High-impact Flame Retardant
Housing
Polycarbonate,UL94V-0
Phosphor Bronze With Gold
Spring Wire
plated 3µ 50µ
IDC Contact Phosphor Bronze
Insertio n life ≥1000 mating cycles
Operating 0 0
Temperature Range -60 C to 80 C
IDC Accept 22-26 AWG
Wire Scheme T568A/B
Insulation Resistance 500Ω
Current Rating 1.5Amps
DC Resistance 0.1 ohm MAX
Voltage 150 VAC MAX
Plug Retention Forc e 89N
RJ45 8P8C 50µ Punch Down Jacks Structured Cabling
Jack Shield Zinc Die Casting
Ordering Information
Part No. * Value
ANC6ASPKJ-180 CAT.6A STP 180˚ Keystone Jack
ANC6ASPKJ-90 Cat.6A STP 90˚ Keystone Jack
* Standard Product comes in White Color. For keystone Jacks of other colors add RD (Red), Green(GR),YL(Yellow),
Blue(BL), Grey(GY), Black(BK) after the Part Number.
....................................................................................................................................................................................................................................................................................
Cat.5e STP Keystone Jacks
Feature Value
High-impact Flame Retardant
Housing
Polycarbonate, UL94V-0
Phosphor Bronze With Gold
Spring Wire
plated 3µ 50µ
IDC Contact Phosphor Bronze
Insertio n life ≥1000 mating cycles
Operating -60 C to 80 C
0
0
Temperature Range
IDC Accept 22-26 AWG
Wire Scheme T568A/B
Insulation Resist ance 500Ω
Current Rating 1.5Amps
DC Resist ance 0.1 ohm MAX
Voltage 150 VAC MAX
Plug Retention Forc e 89N
RJ45 8P8C 50µ Punch Down Jacks
Jack Shield Zinc Die Casting
Ordering Information
Part No. * Value
ANC5ESPKJ -180 CAT.5e STP 180˚ Keystone Jack
ANC5ESPKJ -90 Cat.5e STP 90˚ Keystone Jack
* Standard Product comes in White Color. For keystone Jacks of other colors add RD (Red), Green(GR), YL (Yellow),
Blue(BL), Grey(GY), Black(BK) after the Part Number.
