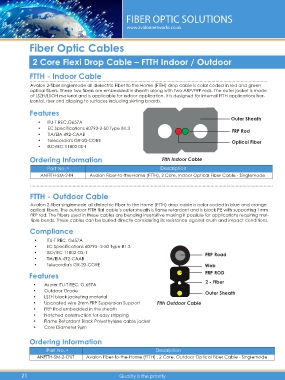

Page 30 - Avalon Catalogue

FIBER OPTIC SOLUTIONS
www.avalonnetworks.co.uk

Fiber Optic Cables

2 Core Flexi Drop Cable – FTTH Indoor / Outdoor

FTTH - Indoor Cable
...................................................................................................................................................................................
Avalon 2-fiber singlemode all dielectric Fiber to the Home (FTTH) drop cable is color coded in red and green
optical fibers. These two fibers are embedded in sheath along with two ARP/FRP rods. The outer jacket is made
of LSZH/LSOH material and is applicable for indoor application. It is designed for internal FTTH applications hor-
izontal, riser and clipping to surfaces including skirting boards.
Features
Outer Sheath
• ITU-T REC.G657A
• EC Specifications 60793-2-50 Type B1.3 FRP Rod
• TIA/EIA 492-CAAB
• Telecordia's GR-20-CORE Optical Fiber
• ISO/IEC 11802 0S-1
Ordering Information Ftth Indoor Cable

Part No. * Description

ANFTTH-SM-2-IN Avalon Fiber-to-the-Home (FTTH), 2 Core, Indoor Optical Fiber Cable - Singlemode
.......................................................................................................................................................................................

FTTH - Outdoor Cable
Avalon 2-fiber singlemode all dielectric Fiber to the Home (FTTH) drop cable is color coded in blue and orange
optical fibers. The outdoor FTTH flat cable’s outer sheath is flame retardant and is black PE with supporting 1mm
FRP rod. The Fibers used in these cables are bending insensitive making it possible for applications requiring mul-
tiple bends. These cables can be buried directly considering its resistance against crush and impact conditions.
Compliance

• ITU-T REC. G657A
• EC Specifications 60793 -2-50 Type B1.3
• ISO/IEC 11802 OS-1 FRP Road
• TIA/EIA 492-CAAB
• Telecordia's GR-20-CORE Web
Features FRP ROD
2 - Fiber
• As per ITU-T REC. G.657A
• Outdoor Grade Outer Sheath
• LSZH black jacketing material
• Upcoated wire 2mm FRP Suspension Support Ftth Outdoor Cable
• FRP Rod embedded in the sheath
• Notched construction for easy stripping
• Flame Retardant Black Polyethylene cable jacket
• Core Diameter 9µm

Ordering Information

Part No. * Description

ANFTTH-SM-2-OUT Avalon Fiber-to-the-Home (FTTH) , 2 Core, Outdoor Optical Fiber Cable - Singlemode
