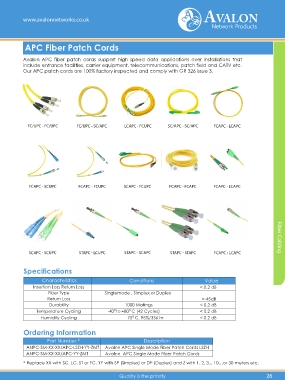

Page 35 - Avalon Catalogue

www.avalonnetworks.co.uk

APC Fiber Patch Cords

Avalon APC fiber patch cords support high speed data applications over installations that
include entrance facilities, carrier equipment, telecommunications, patch field and CATV etc.
Our APC patch cords are 100% factory inspected and comply with GR 326 issue 3.

FC/UPC - FC/UPC FC/UPC - SC/APC LCAPC - FCUPC SC/APC - SC/APC FCAPC - LCAPC

FCAPC - SCUPC FCAPC - FCUPC SCAPC - FCUPC FCAPC - FCAPC FCAPC - LCAPC

SCAPC - SCUPC STAPC - LCUPC STAPC - SCAPC STAPC - STAPC FCAPC - LCAPC Fiber Cabling

Specifications

Characteristics Conditions Value

Insertion Loss Return Loss < 0.2 dB
Fiber Type Singlemode , Simplex or Duplex
Return Loss >-45dB
Durability 1000 Matings < 0.2 dB
Temperature Cycling -40 to +80 C (42 Cycles) < 0.2 dB
0
0
0
Humidity Cycling 75 C, 95%/336 hr < 0.2 dB
Ordering Information

Part Number * Description
*
ANPC-SM-XX-XX/APC-LSZH-YY-ZMT Avalon APC Single Mode Fiber Patch Cords LSZH
ANPC-SM-XX-XX/APC-YY-ZMT Avalon APC Single Mode Fiber Patch Cords

* Replace XX with SC, LC, ST or FC. YY with SP (Simplex) or DP (Duplex) and Z with 1, 2, 3... 10…or 30 meters etc.
