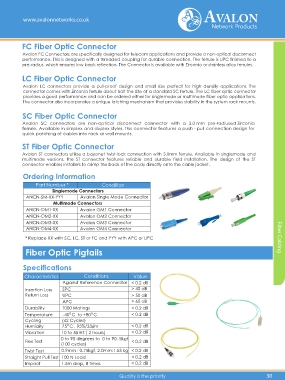

FC Fiber Optic Connector
Avalon FC Connectors are specifically designed for telecom applications and provide a non-optical disconnect
performance. This is designed with a threaded coupling for durable connection. The ferrule is UPC finished to a
pre-radius, which ensures low back reflection. The Connector is available with Zirconia or stainless alloy ferrules.

LC Fiber Optic Connector

Avalon LC connectors provide a pull-proof design and small size perfect for high density applications. The
connector comes with Zirconia ferrule about half the size of a standard SC ferrule. The LC fiber optic connector
provides a good performance and can be ordered either for singlemode or multimode fiber optic applications.
The connector also incorporates a unique latching mechanism that provides stability in the system rack mounts.

SC Fiber Optic Connector
Avalon SC connectors are non-optical disconnect connector with a 3.0 mm pre-radiused Zirconia
ferrule. Available in simplex and duplex styles, this connector features a push - pull connection design for
quick patching of cables into rack or wall mounts.

ST Fiber Optic Connector
Avalon ST connectors utilize a bayonet twist-lock connection with 3.0mm ferrule. Available in singlemode and
multimode versions, the ST connector features reliable and durable field installation. The design of the ST
connector enables installers to crimp the back of the body directly onto the cable jacket.
Ordering Information

Part Number * Condition

Singlemode Connectors
ANCN-SM-XX-YYY Avalon Single Mode Connector
Multimode Connectors
ANCN-OM1-XX Avalon OM1 Connector
ANCN-OM2-XX Avalon OM2 Connector
ANCN-OM3-XX Avalon OM3 Connector
ANCN-OM4-XX Avalon OM4 Connector
* Replace XX with SC, LC, ST or FC and YYY with APC or UPC Fiber Cabling

Fiber Optic Pigtails

Specifications

Characteristics Conditions Value
Against Reference Connector < 0.2 dB
Insertion Loss SPC > 40 dB
Return Loss UPC > 50 dB
APC > 60 dB
Durability 1000 Matings < 0.2 dB
0
Temperature -40 C to +80 C 0 < 0.2 dB
Cycling (42 Cycles)
0
Humidity 75 C , 95%/336hr < 0.2 dB

Vibration 10 to 55 HZ ( 2 hours) < 0.2 dB
0 to 90 degrees to 0 to 90, 5kgf
Flex Test < 0.2 dB
(100 cycles)
Twist Test 0.9mm : 0.75kgf, 2.0mm:1.53 kg < 0.2 dB
Straight Pull Test 100 N Load < 0.2 dB
Impact 1.5m drop, 8 times < 0.2 dB
