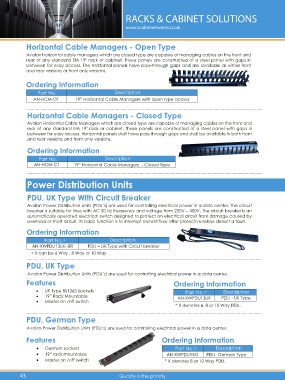

Page 52 - Avalon Catalogue

RACKS & CABINET SOLUTIONS

www.avalonnetworks.co.uk

Horizontal Cable Managers - Open Type

Avalon horizontal cable managers which are closed type are capable of managing cables on the front and
rear of any standard EIA 19″ rack or cabinet. These panels are constructed of a steel panel with gaps in
between for easy access. The horizontal panels have pass-through gaps and are available as either front

and rear versions or front only versions.

Ordering Information
Part No. Description
AN-HCM-OT 19” Horizontal Cable Managers with open type access
......................................................................................................................................................................................................
Horizontal Cable Managers - Closed Type
Avalon Horizontal Cable Managers which are closed type are capable of managing cables on the front and
rear of any standard EIA 19″ rack or cabinet. These panels are constructed of a steel panel with gaps in

between for easy access. Horizontal panels shall have pass-through gaps and shall be available in both front
and rear versions and front only versions.
Ordering Information
Part No. Description
AN-HCM-CT 19” Horizontal Cable Managers – Closed Type

......................................................................................................................................................................................................
Power Distribution Units

PDU, UK Type With Circuit Breaker

Avalon Power Distribution Units (PDU’s) are used for controlling electrical power in a data center. The circuit
breaker is suitable for lines with AC 50 Hz frequency and voltage from 230V – 400V. The circuit breaker is an
automatically operated electrical switch designed to protect an electrical circuit from damage caused by
overload or short circuit. Its basic function is to interrupt current flow after protective relays detect a fault.
Ordering Information

Part No.* Description
AN-XWPDU13UK-BR PDU – UK Type with Circuit breaker

X can be 6 Way , 8 Way or 10 Way
*
.....................................................................................................................................................................................................
PDU, UK Type
Avalon Power Distribution Units (PDU’s) are used for controlling electrical power in a data center.
Features Ordering Information

• UK Type BS1363 Sockets Part No.* Description

• 19” Rack Mountable AN-XWPDU13UK PDU - UK Type

• Master on /off switch
* X denotes 6, 8 or 10 Way PDU.
.....................................................................................................................................................................................................
PDU, German Type
Avalon Power Distribution Units (PDU’s) are used for controlling electrical power in a data center.
Features Ordering Information

• German sockets Part No. * Description

• 19” rack mountable AN-XWPDU13G PDU- German Type
• Master on /off switch * X denotes 8 or 10 Way PDU.
