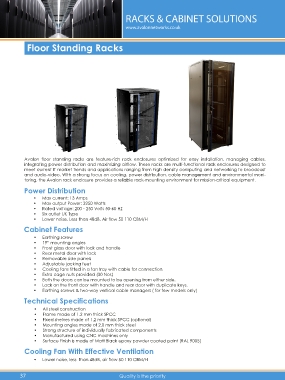

Page 46 - Avalon Catalogue

RACKS & CABINET SOLUTIONS

www.avalonnetworks.co.uk

Floor Standing Racks

Avalon floor standing racks are feature-rich rack enclosures optimized for easy installation, managing cables,
integrating power distribution and maximizing airflow. These racks are multi-functional rack enclosures designed to
meet current IT market trends and applications ranging from high density computing and networking to broadcast
and audio-video. With a strong focus on cooling, power distribution, cable management and environmental moni-
toring, the Avalon rack enclosure provides a reliable rack-mounting environment for mission-critical equipment.
Power Distribution

• Max current: 13 Amps
• Max output Power: 3250 Watts
• Rated voltage: 200 - 250 Volts 50-60 HZ
• Six outlet UK Type
• Lower noise, Less than 48dB, Air flow 50 110 CBM/H
Cabinet Features

• Earthing screw
• 19” mounting angles
• Front glass door with lock and handle
• Rear metal door with lock
• Removable side panels
• Adjustable jacking feet
• Cooling fans fitted in a fan tray with cable for connection
• Extra cage nuts provided (30 Nos)
• Both the doors can be mounted to be opening from either side.
• Lock on the front door with handle and rear door with duplicate keys.
• Earthing screws & two-way vertical cable managers ( for few models only)
Technical Specifications

• All steel construction
• Frame made of 1.2 mm thick SPCC
• Fixed shelves made of 1.2 mm thick SPCC (optional)
• Mounting angles made of 2.0 mm thick steel
• Strong structure of individually fabricated components
• Manufactured using CNC machines only
• Surface Finish is made of Matt Black epoxy powder coated paint (RAL 9005)
Cooling Fan With Effective Ventilation

• Lower noise, less than 48dB, air flow 50 110 CBM/H
